Installing the tuner in the garden

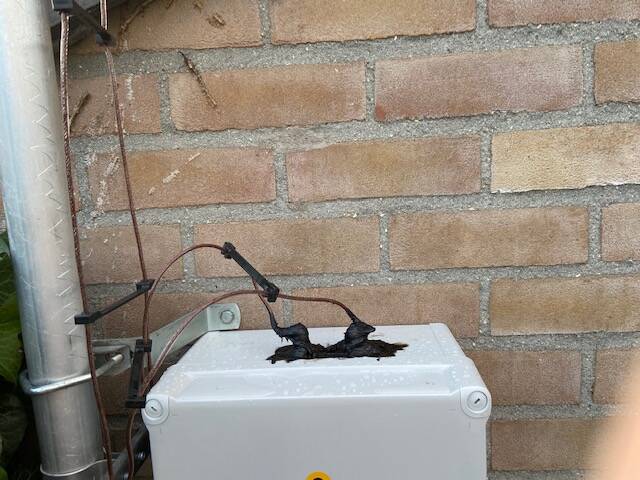

ok, time to install the tuner in the garden right under the chicken ladder.

I screwed the box to the wall, and connected the chicken ladder, the coax and control cable.



In the house, close to the PC I installed the communication box. I feed it with 12.3 Volts with an adapter, and connected the little box to the computer with the USB cable. I put a lot of Ferrite over the USB-cable because I expect problems in the PC USB cable section, when I am going to make some power.

So, everything is connected now. My FT-950 to the power amplifier, the power amplifier to the tuner via about 15 meter coax. The PC to the communication box, and this box to the UTP cable to the tuner. The tuner is connected to the chicken ladder.

Well, let's take a look what the set up is doing when I put some power on it.
